Unbrick 所有的Qualcomm Snapdragon 从 Qualcomm HS-USB QDLoader 9008 (如果你有需要的ROM)

SnapDragonIsComming





请不要在完全读完文章之前问我要密码,如果您没有需要的ROM的话,这工具是没有用的!您可以分享您手机型号和(QPST)ROM,这样可以让更多的人用到,谢谢!

拥有Qualcomm的LG,HTC,Samsung,Sony和Motorola手机不适合用本工具。

Snapdragon 不能破: 第二部分!

今天我们来把我们心爱的Snapdragon从它们最糟糕的噩梦;Qualcomm HS-USB QDLoader 9008砖,qhsusb_dload中救出来。就像我之前说过的,这些根本不是砖。如果没有硬件相关的问题,比如;Emmc 或 Emmc 安全启动错误的话就别怕死神,欢迎来到魔术!

对于这些术语不熟悉的话,请先读第一文章。

http://www.androidbrick.com/ultimate-qualcomm-snapdragon-unbrick-guide-snapdragons-are-unbrickable/

snapdragon_9_0



这次我们要用的工具来自ZTE,是一个很惊人的工具,带有多种拯救或修复的选项包括Mediatek 论坛,还有很多我不知道的选项,因为我最近对Qualcomm 论坛比较有兴趣。(我们已经知道Mediatek MTK 论坛也是不能破的,当然要有对的ram和设置工具。)

拥有Qualcomm的LG,HTC,Samsung,Sony和Motorola手机,我担心这工具不适合用,因为这些公司选择不用默认选项,它们不想让我们那么容易的拯救我们的手机。不然它们在世界各地的服务中心怎么办?虽然它们可以很容易的解决这个问题,但是它们为了赚更多更多更多的前而选择改变‘模板’

拥有LG G3手机的, 我有一个来自LG公司的关于Qualcomm HS-USB QDLoader 9008砖的文章和工具,可以看一看:http://www.androidbrick.com/unbrick-recover-your-dead-lg-g3-all-variants/

回到我们的主要话题,这个工具可以检测到所有的Qualcomm服务接口包括9006和9008,它自己(ZTE),总的来说所有用Qualcomm通信协议的接口所以虽然有我在第一文章说过的Miflash或Oneplus One 和Oppo 7的MSM8974 Download Tool (下载工具)你可以用这个工具。再也不用处理久的QPST emmcsdownload.exe, 您可以忘记那些所有 而只用这个魔术。

你们将会亲眼看到我为什么一直在叫它魔术,它不仅用来unbrick手机,比如你有一台中国市场的Lenovo K920 你想flash 一个ROW rom (世界其他地区,包括google gapps和多语言)在手机上面。Lenovo 是那些发布它们自己QPST rom 的公司其中一个。您只要把modem_img 从中国rom复制到ROW rom文件然后用工具去设置它,就不会再有modem调制解调器)相关的问题,不会再有红叉(用lenovo手机的能明白我的意识)

如果您手机是Oneplus (或oppo7)就不应该被破,可能会出现modem调制解调器)相关的问题,因为中国modem(调制解调器)跟ROWmodem(调制解调器)有区别,你可以用这个工具来修复您的手机。先把您的Oppo给关机,然后按声音放大键 然后插入USB 然后查看您手机的设备管理器,可以看到您的Qualcomm HS-USB QDLoader 9008接口 (这个在任何Qualcomm Snapdragon 800或以上的都有用,除非您是到生产厂家去拿的,你知道我说的是谁,那些骗子) 那么我们现在知道了什么呢? 别害怕那些QDLoader接口, 它们只是服务rom用的服务接口.

P.S: 如果你有一个锁定了的bootloader的话,这些工具对于一些9006是没有用的,除非你跟9008用一个腐败的bootloader,猜猜会发生什么?再也没有任何bootloader,没有任何锁定了的东西。拥有小米手机的,您可以用‘fastboot’ rom。拥有nubia的,妳们的拯救rom一般可以在线找到,如果您找不到的话请跟我说,以后我会把网站地址放到网站上。

拥有opo手机的,已经知道该怎么做了。

不多说了,我们先做个演示。让下面的图片一步步地教我们该怎么做。1_Qualcomm_HS-USB-_QDLoader_9008

2_Qualcomm_HS-USB-_QDLoader_9008_2



右键点击androidbrick.exe 然后以管理员身份运行 输入密码(到文件里),点击绿色的刷新图表然后tool studio 会显示qualcomm 9008接口如果没有显示的话拔取USB线再插入一次,点击刷新。

3_Qualcomm_HS-USB-_QDLoader_9008_3

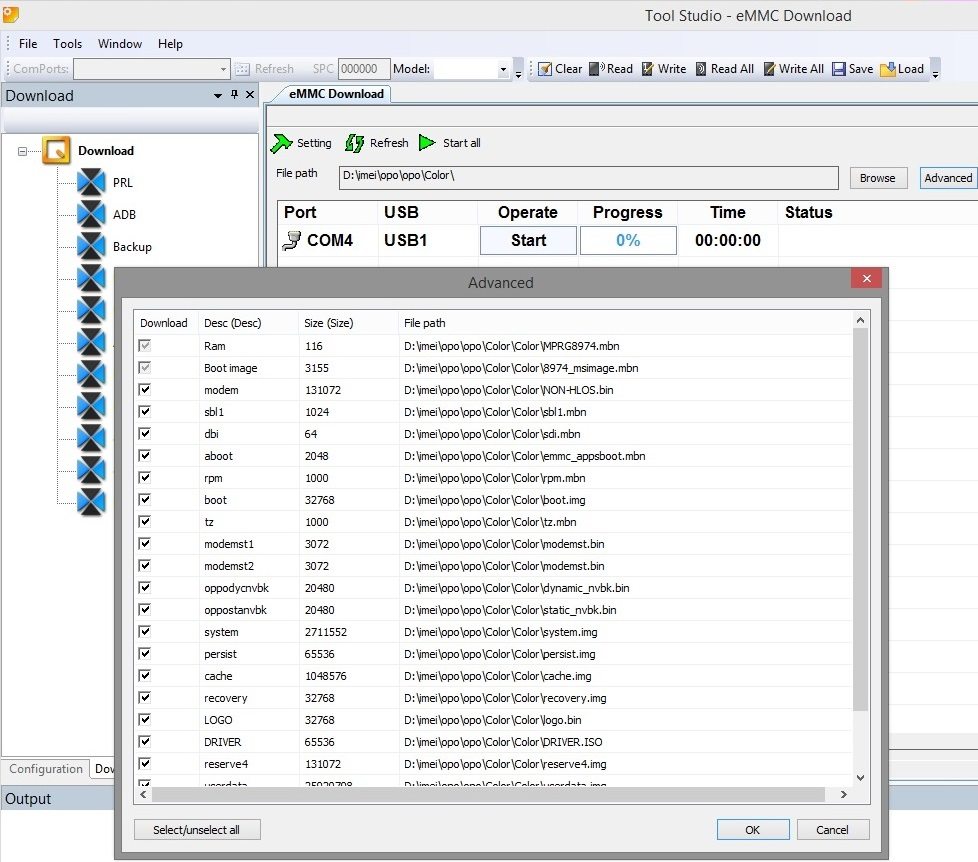

点击‘browse‘ 然后选您rom的文件,在我的例子是”D:\imei\opo\opo\color\”。现在我要您点击’advanced’ 让您亲眼看到。里面是您rom的所有分区。前两个选项是灰色的因为它们是 ‘必有’ 这个词在我第一文章有提过,应该还记得吧?不记得的话请再读一遍。

1. MPRG8974.mbn (或者hex格式)看见它的精确度了马?‘ram’是用来然我们死了的snapdragon醒来。

2.8974-msimage_mbn ”boot image” 这是我们的 bootloader,fastboot image,如果你像我,也是fastboot 指令的粉丝的话你可能会猜这两个mbn就可以用来救我们的手机。先不要急, 我们的乐趣才开始!

4_Qualcomm_HS-USB-_QDLoader_9008_4

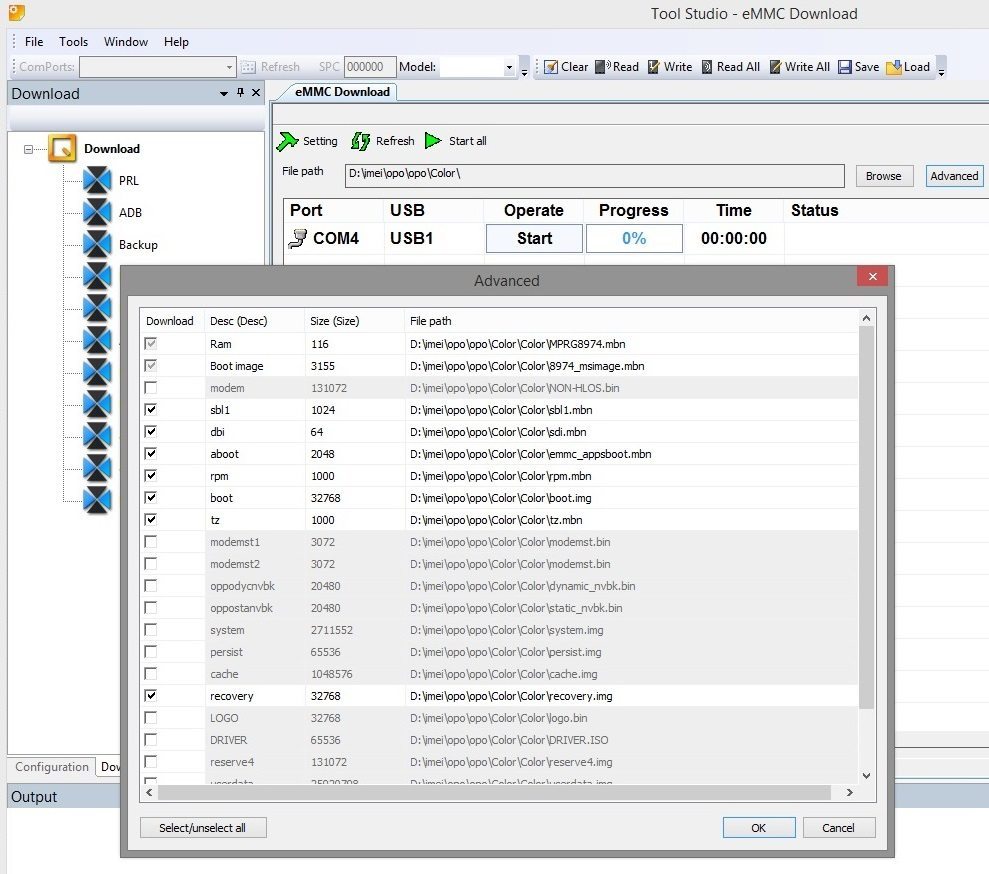

正如您在这里可以看到 我可以选我想要设置的任何分区,这样 如果你不想设置所有的rom(因为是一个新安装,你会失去所有东西)而只想修理你的启动划分而可以把你的系统和用户资料(还有我们著名的其中包括我们的imei的modemst1和modemst2)留着原样的。或者你可以只设置NON-HLOS.bin (modem.img)来修理你手机的型号等等(或者没有砖的Snapdragon)谁还需要fastboot呢?

5_Qualcomm_HS-USB-_QDLoader_9008_5

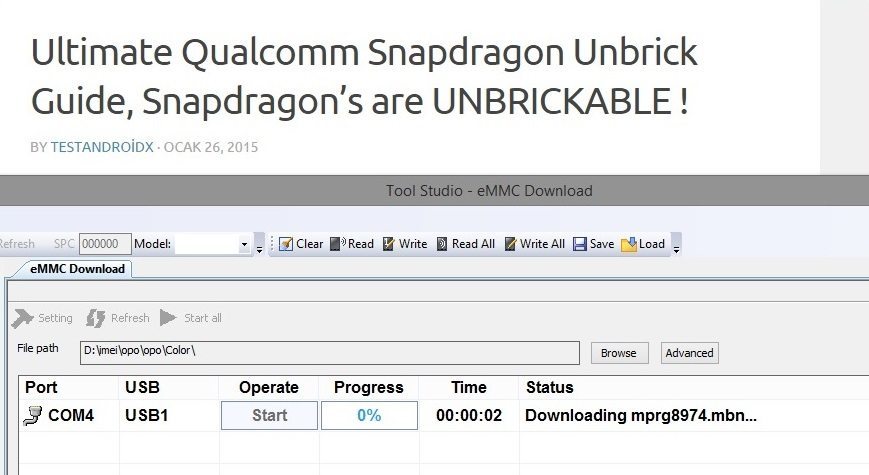

回到9008的unbrick,在您点击‘refresh’旁边的绿色的‘start all’或者‘operate’下面的‘start’按键,魔术就会开始。第一先会把我们的ram下载到手机里,



6_Qualcomm_HS-USB-_QDLoader_9008_8

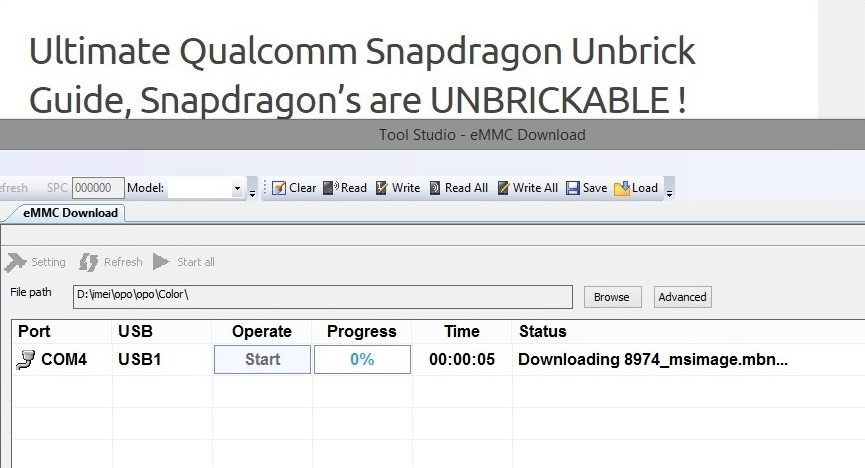

第二十我们的‘bootloader’,‘boot image’。 魔术会继续,然后你会发现工具会停下来等,等什么呢?请看下个图。



7_Qualcomm_HS-USB-_QDLoader_9008_6



嘿!我们的Qualcomm HS-USB QDLoader 9008 接口到哪里去了?刚才我们的工具就在等着这个, 我们的接口已经到HS-USB Diagnostics 9006 模式去了,Qualcomm说9006是‘紧急加载模式’。其余的rom会在这模式下加载。请别把这跟9006 QDLoader 接口搞混了,它是丢失的分区表或是在我们的分区表里丢失的划分,我们的魔术工具当然会修理这个问题:)请看一下时间,挺快的吧。

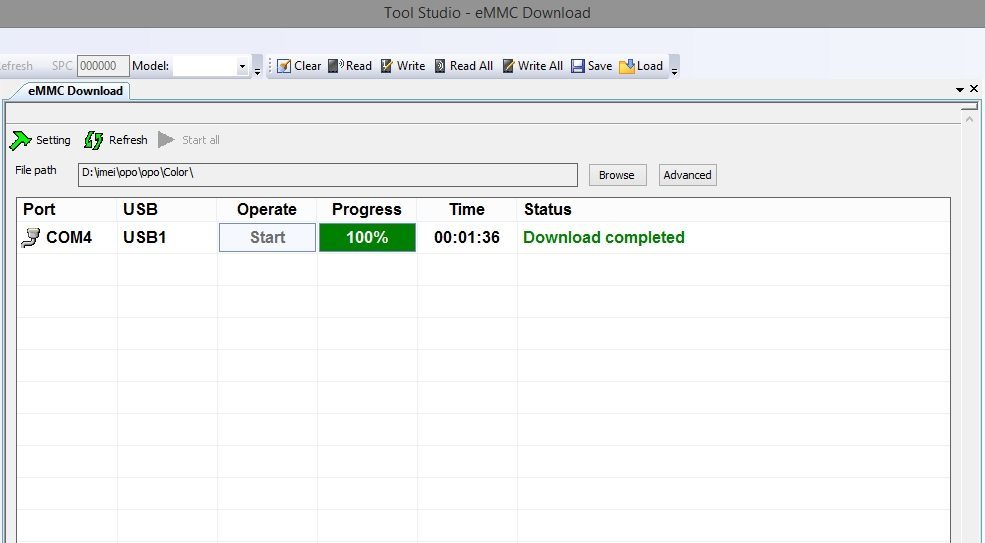

8_Qualcomm_HS-USB-_QDLoader_9008_9

再看一次,太快了,还不到2分钟,这速度跟你电脑的速度当然有关系。我用了SSD,很多的ram和Intel 3570K。你‘死机’了的手机已经准备再次开机了。。。享受吧。。。不用谢:)

PS:您的杀毒软件检测这工具为一个恶意软件而把它在运行时删掉,把您的杀毒软件暂停,不会有什么事情发生,就像我说的别怕死神。

PS2: 如果做错了什么事情不要那么容易放弃,先检查您的驱动程序,工具会把9008换成9006,如果你有未找到的驱动程序或Windows问题的话工具没有用的,其实没有听起来的那么容易,你应该控制每一步!(除非你手机没有不好的或腐败的emmc)。

http://www.androidbrick.com/download/androidbrick-qualcomm-snapdragon-rescue-unbrick-tool-for-xiaomi-oneplus-one-oppo-lenovo-zte-nubia/



PS3:尊敬的来自世界各地的读者, 我最近每天收的邮件越来越多,我每天都花很多时间去回答这些邮件。所有的提示在文章里都有,请仔细阅读而做更多的搜索!谢谢。



qualcomm_0



英中文翻译 Burcu Ceylan
