iBasso DX240 DAP 7

iBasso DX240 DAP

DAP
2 min read

On their 15th anniversary, iBasso has introduced a brand new DAP, the iBasso DX240. DX240 brings better sound with its flagship ES9038Pro DAC chip. It has the classic replaceable amp module design with support for AMP1-AMP8 modules by iBasso same as that with the DX220. The latest AMP9 module that they designed specifically for the flagship DX300 is not supported by the DX240. On stock, DX240 comes packed with an AMP1 mk3 AMP module that features 3.5mm LO, 3.5mm PO, and 2.5mm TRRS PO as its interfaces.

iBasso DX240 DAP 5

For better UI and snappy performance, iBasso has equipped the DX240 with Qualcomm Snapdragon 660SoC paired with 4GB Ram and 64GB ROM. DX240 bridges the gap between the DX300 and DX220 by offering snappy UI, flagship-grade sound, full 16x MQA decoding, 5” 1080p Full HD display, Open Android 9.0 OS, and many more features. iBasso DX240 is currently available on pre-order

iBasso DX240 DAP 4

iBasso has loaded the DX240 with two OS that users can easily switch between. First is an open Android 9.0 OS, and for a pure music system, you can switch to iBasso’s Mango OS that delivers a pure music experience.

iBasso DX240 DAP 8

Specs

  • >Flagship ES9038 Pro DAC chip.
  • >Supports high-resolution 32-Bit/768kHz PCM and Native DSD512 decoding.
  • >Full 16x MQA decoding.

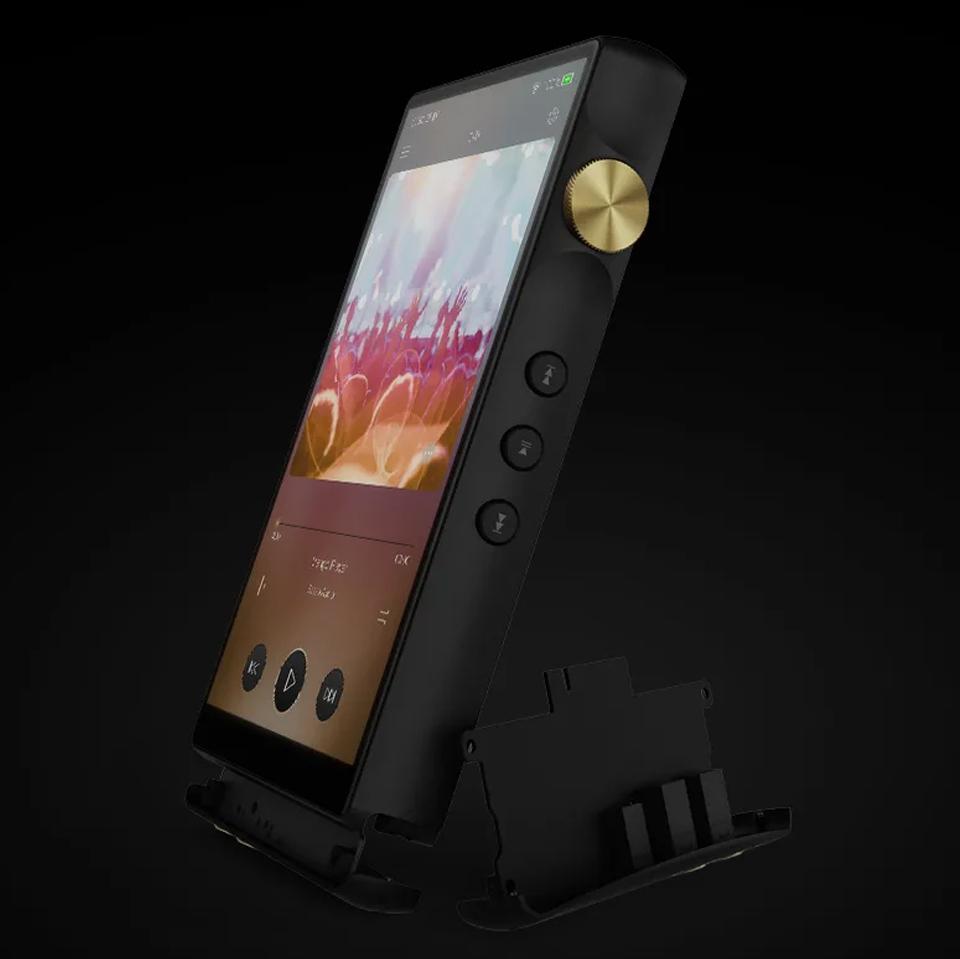

  • >Swappable AMP module design with support for existing AMP1-AMP8.
  • >Comes stock with AMP1 MK3 module.
  • >Self-developed FPGA Master technology.
  • >Dual independent NDK femtosecond crystal oscillators.
  • >Sharp 5” 1080P Full HD display.
  • >High-speed USB 3.1 connector.
  • >Lightning-Fast Snapdragon 660 SoC.
  • >4GB RAM.
  • >64GB ROM.
  • >Up to 2TB MicroSD card slot.
  • >Coaxial output support.
  • >Bluetooth V5.0 connectivity.
  • >Dual Band WiFi(2.4GHz/5GHz).
  • >Dual OS, Mango OS & Open Android 9.0.
  • >Up to 11 hours of continuous music playback.

iBasso DX240 DAP 1

Technical Specs

  • >Stock amp module: AMP1 MK3.

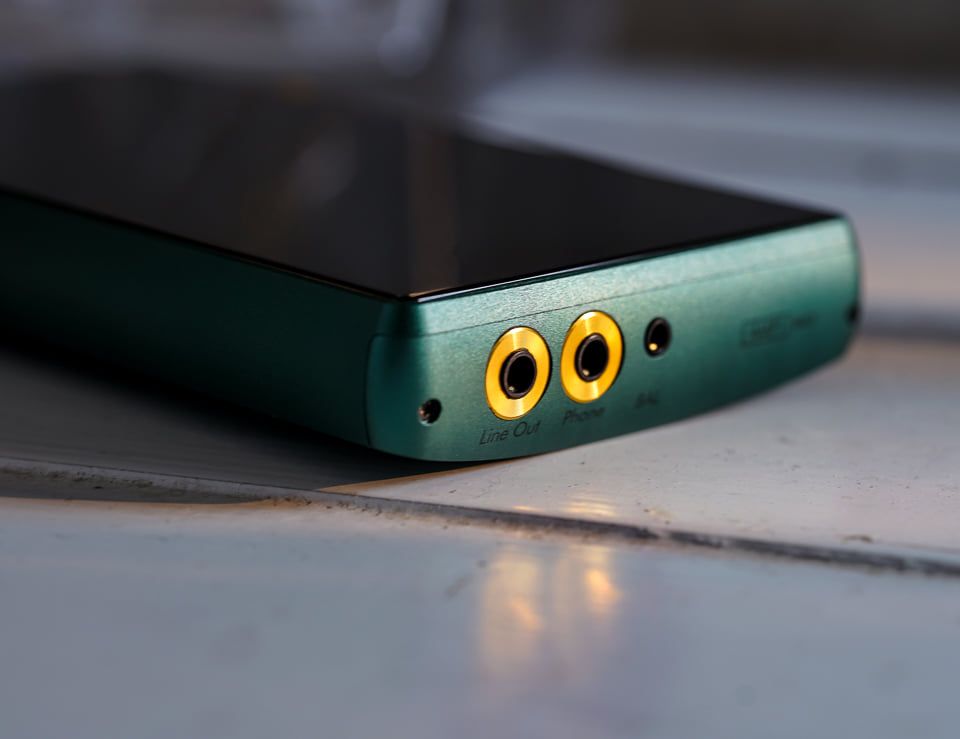

  • >Output ports: 2.5mm TRRS, 3.5mm Single-ended, 3.5mm Line Out.
  • >Display: 5.0” 1080P Full HD.
  • >Battery capacity: 4400mAh.
  • >Charging time: 2.5H.
  • >Playback time: up to 11 hours.

iBasso DX240 DAP 2

Output Parameters (2.5mm Bal)

  • >Maximum output level: 6.2Vrms.
  • >Power: 878mW@32Ω, 128mW@300Ω.
  • >Frequency response: 10Hz-45kHz.
  • >SNR: 125dB.
  • >DNR: 125dB.
  • >THD+N: -114dB.
  • >Resolution: -119dB.
  • >Output Impedance: 0.57Ω.

iBasso DX240 DAP 3

Output Parameters (3.5mm Single-ended)

  • >Maximum output level: 3.1Vrms.
  • >Power: 281mW@32Ω, 32mW@300Ω.
  • >Frequency Response: 10Hz-45kHz.
  • >SNR: 123dB.
  • >DNR: 123dB.
  • >THD+N: -110dB.
  • >Resolution: -117dB.
  • >Output Impedance: 0.38Ω.

Price: 919$
