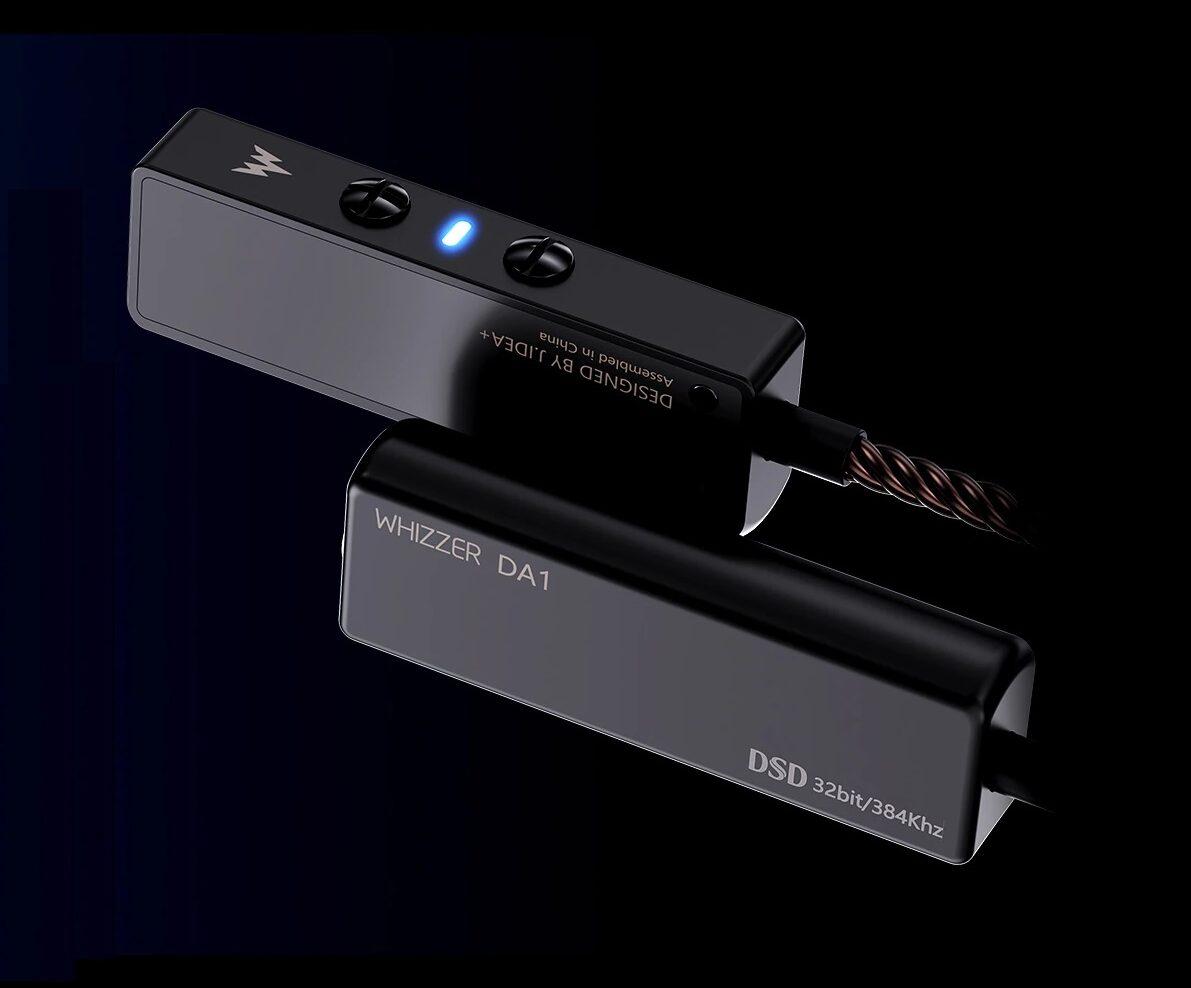

Whizzer DA1 USB DAC rotated

Whizzer DA1 USB DAC

The body of the DA1 is made from a single aluminium ingot, which has been machined nearly a hundred times on a five-axis precision machine. The combination of simple form and advanced craftsmanship.Whizzer DA1 USB DAC 2 e1653207446507For DA1 Whizzer chose the ESS9270 DAC chip. The ESS9270 is a high-performance DAC, ADC module and SABRE integrated amplifier in a very small package, with a maximum theoretical signal-to-noise ratio of +116 dB. Whizzer DA1 USB DAC 5 e1653207495433Whizzer has added a number of selected capacitor circuits around the chip to improve the sound problems caused by the direct outgoing signal from the chip amplifier module. A good peripheral circuit design further reduces the circuit noise.Whizzer DA1 USB DAC 3 e1653207549530The DA1 can achieve good operating conditions under a wide range of driving conditions. The maximum drive level of 2Vrms is guaranteed while controlling the maximum output power of 70mW@32 0hm. The DA1 not only meets the driving needs of headphones but also provides better real-world driving performance under everyday acoustic pressure.Whizzer DA1 USB DAC 6 e1653207599208The DA1 is equipped with an independent outpower system. The precise arrangement of the output power at 30 points allows for more precise matching of different impedances to the front-end. This reduces linear and non-linear distortion caused by overloads.Whizzer DA1 USB DAC

Whizzer DA1 has hardware volume keys which support 30 levels of power adjustments.

Specs

Model: Whizzer DA1
Size: 51*16.5*9.2mm
Input: USB TYPE—C
Output: 3.5mm
DAC Model: ESS9270
Output Level: 70mW@32 0hm
Sample: 32bit/384kHz, DSD128 (DoP)

Price: 45$
