TRN BT30 Review

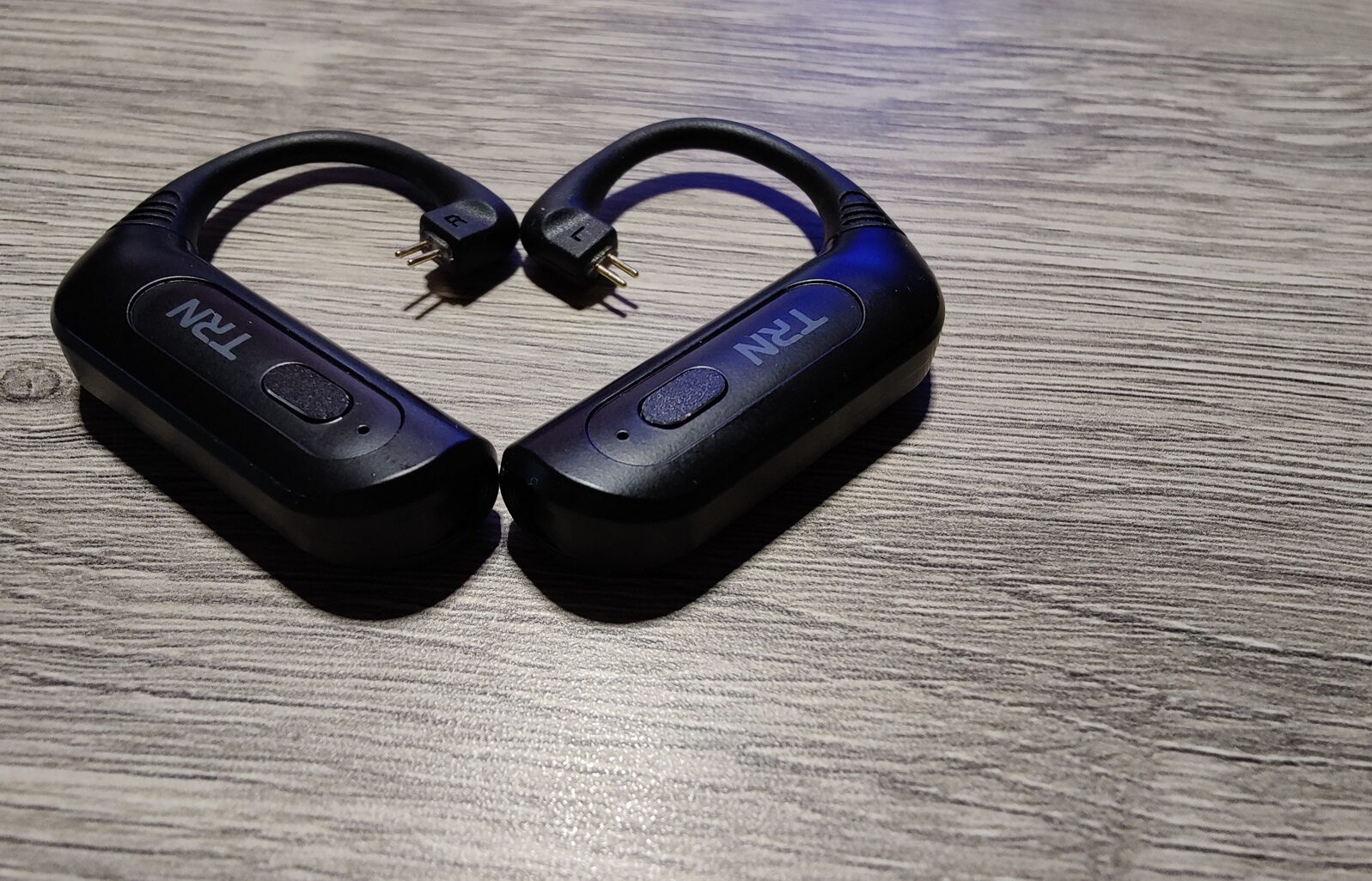

TRN BT30 is a Bluetooth ear hook on which you can attach an IEM. Why bother you might say instead of having a regular TWS. Well if the sound quality is the most important thing for you in a wireless earphone then you should. Ok, this solution comes with extra pressure for your ears compared to regular TWS’s, but in return, you have the chance to use your beloved IEM and turn your wireless earphone into another level of joy. The good thing is that TRN BT30 comes with changeable connector options so you can choose between 0.78 two-pin, MMCX, or other two-pin standards. As you see I also purchased the mmcx connectors (they cost 9.90$) so every IEM in my collection is covered.
TRN BT30 Bluetooth Earphone Module Review 5
Actually, the BT30 shares the same body and case as the previous model TRN BT20S Pro. In addition, the BT30 has an amp section (MAX97220A) in this version which enhances sound quality and the additional power for your needy IEM, 42mW Output power @ 16Ω, this is almost the same power that you get with many USB dongle DAC/AMPs. My first USB dongle DAC was Hilidac Atom Pro with 46mW output power.
TRN BT30 Bluetooth Earphone Module Review 22

TRN BT30 uses Qualcomm QCC3040 BT 5.2 chipset (BT20S Pro was BT 5.0) and supports aptX, AAC, and SBC codecs only. Sadly no LDAC or aptX-HD. Still, aptX supports 16-bit/48KHz and if you have an Android phone with Android 8 and higher, you can enjoy CD-like audio.

TRN BT30 Bluetooth Earphone Module Review 22

TRN BT30 allows 6.5 hours of playback per charge with up to 20 more hours of juice in the charging case. Also has waterproof and sweat-resistant nano-coating. The ear hook part is made from Thermoplastic elastomer (TPE) which is a rigid yet flexible material that ensures proper fit around the ears. It is soft, hypoallergenic, able to withstand climatic heat, body sweat, continuous bending, and reshaping. The rest is made from plastic with the addition of an aluminum alloy button. Touch buttons would have been better IMO.

TRN BT30 Bluetooth Earphone Module Review

TRN BT30 comes in a compact box. There is the shortest Type-C cable that I have ever seen for charging and BT30 itself. The case that charges the ear hooks and holds your IEMs in it, is amazing. I don’t use this word often, but the leather feel and the zipper around it really make this gear on the luxury and practical use side. The zipper is a great idea. The only downside is that it does not have wireless charging support and in this price range, you kinda expect this feature. The TRN T300 TWS has wireless charging for around the same price.

TRN BT30 Bluetooth Earphone Module Review 23 e1639585797394

Specs

Product model: TRN BT30
Bluetooth encoding: aptX/AAC/SBC
Output power: 42mW @ 16Ω
Effective signal range: 15m
Weight: 8g (per earpiece)
Bluetooth: Bluetooth 5.2
Bluetooth chipset: QCC3040
Charging port: Type-C
Battery power capacity: 80mAh (per earpiece)
Charging case power capacity: 700mAh
Standby time: 180 hours
Playback time: 6.5 hours
Playback time with charging case: 20 hours
Charging voltage: DC5V 1A
Modules charging time: 1.5-2h
Charging case charging time: 2.5-3h
TRN BT30 Bluetooth Earphone Module Review 13 e1639585885634

Testing

For testing, I have used one of my “needy” IEMs, the BQEYZ Spring 1 with 43Ω impedance and 108dB sensitivity. Glad I did, I forgot how good the Spring 1 sounds, it’s been almost 2 years since I purchased it, and still competes with many new IEMs in sound quality.

TRN BT30 Bluetooth Earphone Module Review 19

The result is, talking about power, almost perfect 🙂 By that I mean about %90 of the volume I reached my loudest listening level, on some tracks I needed to pump up the volume to the max but was enough, honestly, on some tracks, I decreased the volume to less than %90. I pushed the limits of BT30 but it handled that very well.

So if you have an IEM with specs under 43Ω impedance and 108dB sensitivity (most of you will) then you are good to go with TRN BT30’s. You won’t have any volume level problems.

TRN BT30 Bluetooth Earphone Module Review 10

Sound

BT30 uses the DAC in Qualcomm’s QCC3040 chipset, Qualcomm® Kalimba™ DSP audio subsystem to be exact, which is described as “Qualcomm® aptX™ Audio and aptX HD audio technologies are designed to deliver consistent, high-quality audio streaming over Bluetooth. The internal 24-bit end-to-end audio pipeline and high-performance DACs are designed to deliver high-resolution audio through the audio processing chain.”. The truth is it’s a simple digital to analog converter. Nothing special. But it gets the job done, we are talking about a wireless solution here, can’t be as good as dedicated DAC chips like AKM, ESS, or Cirrus Logic. This goes for every Qualcomm (or any other brand) Bluetooth chipset, so keep that in mind.

But how does it sound? It sounds as good as any 3.5mm output from any of your devices (excluding dedicated DAC chips), but with enough power to drive your IEM. Is this enough for an audiophile? Yes if you are on the go or need wireless sound in any situation. My BQEYZ Spring 1 sounded as good as it sounds from an entry-level USB dongle but without wires and enough output power. The math is simple here, TRN BT30 sounds as good as your IEMs performance.

TRN BT30 Bluetooth Earphone Module Review 18

Conclusion

These Bluetooth ear hooks are not for casual wireless audio lovers, aka communication or basic music listening. Don’t get me wrong, BT30 performs very well in phone call quality but that’s not the point. The point is if you want the best sound quality wirelessly using your own trusted IEM, TRN’s latest BT ear hook with an additional amp section is the best price/performance solution for you. The freedom to be able to change the hooked up IEM anytime gives many future proved wireless audio options and this is a good thing.

I want to thank HiFiGo for sending me TRN BT30 for reviewing as I am still listening to my music wirelessly ending this article. I feel like I have the best TWS right now.
