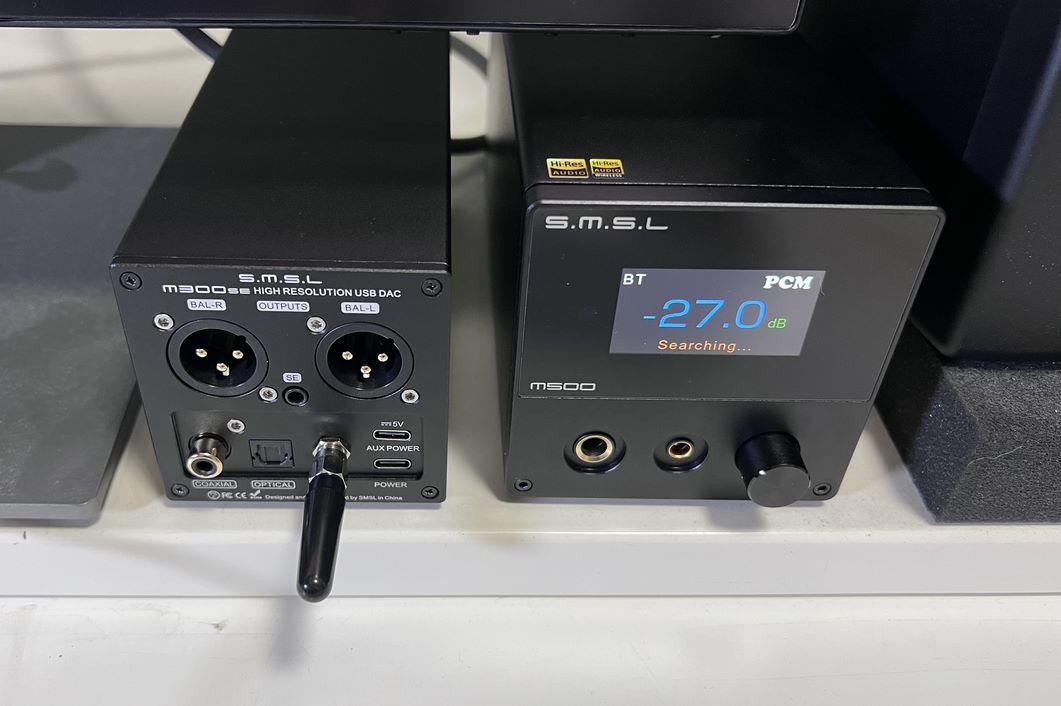

SMSL M300 SE DAC AMP

SMSL M300 SE

SMSL M300 SE Review

SMSL M300 SE – New Dual CS43131 DAC-AMP

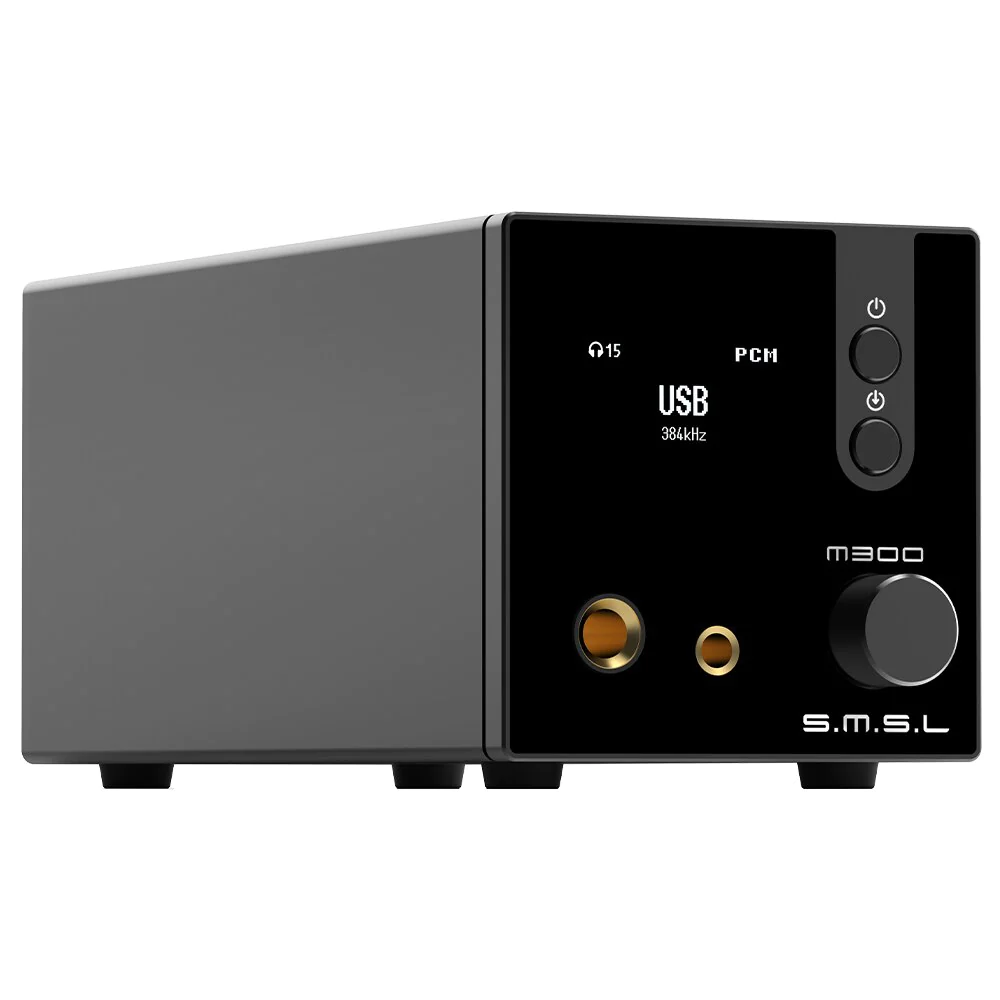

  • A new exterior design with tempered glass panel, both high-end feeling and durable.
  • Dual Cirrus Logic CS43131, 0.00013% (-117dB) distortion.
  • Third-generation XMOS XU-316, PCM support up to 32bit /768kHz, and DSD support up to DSD512.
  • USB support MQA full decoding.
  • Bluetooth 5.0 digital audio input.
  • The clock system uses independent ultra-low clock jitter, and ultra-low phase noise for the audio clock.
  • Built-in high-efficiency power supply chip for the decoder to provide sufficient energy, and the use of multiple groups of low-noise LDO power supply.
  • A large number of audio-specific audiophile resistors and capacitors.

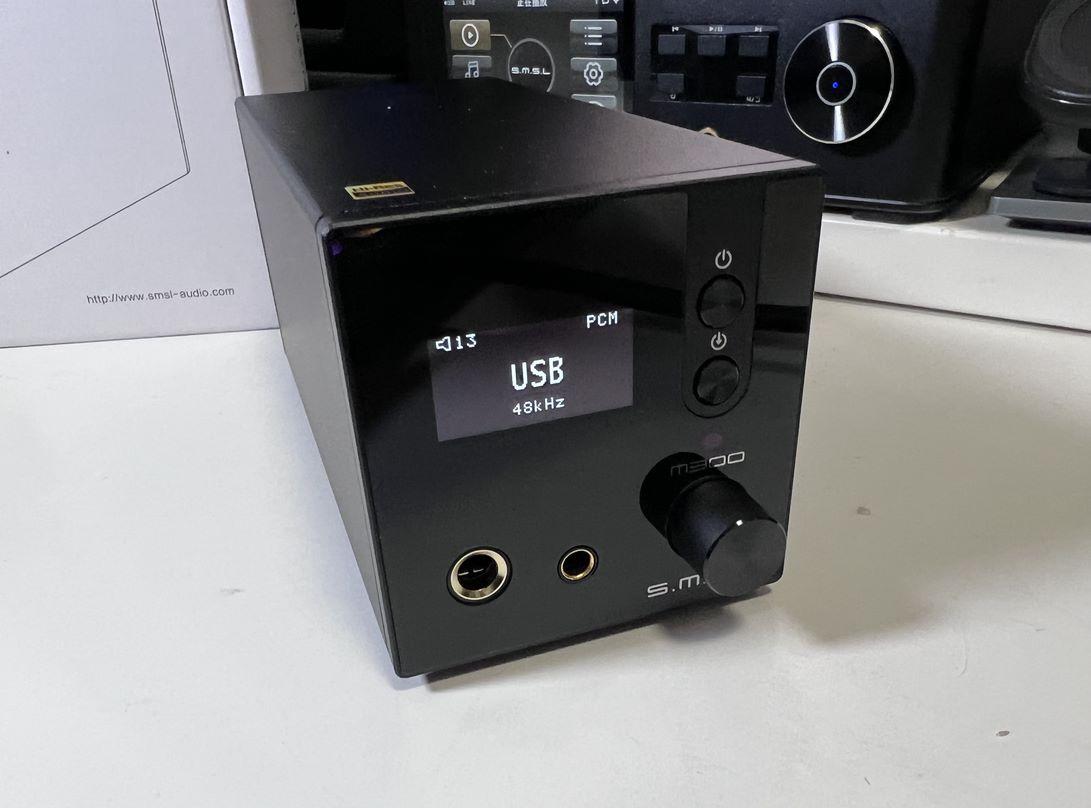

  • 1.29 “OLED display.
  • Fully balanced design.

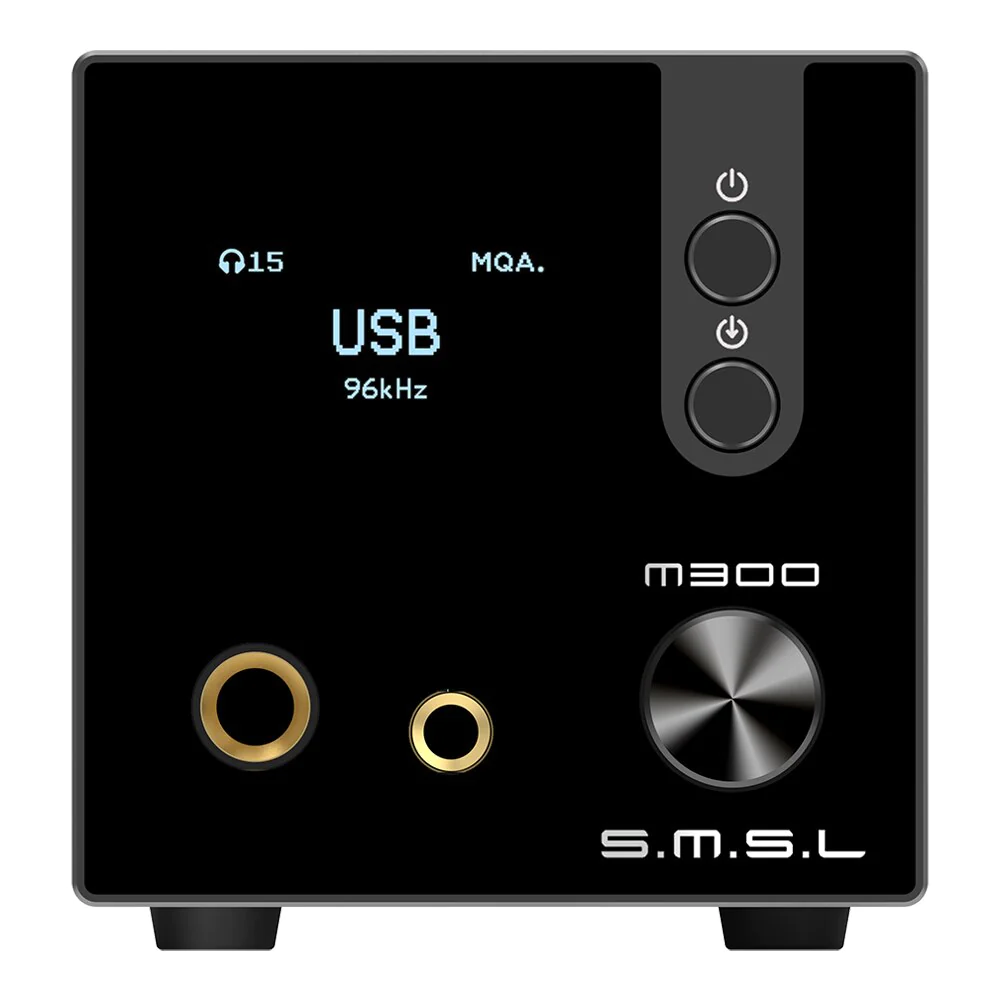

  • With 6.35mm, 4.4mm balanced headphone output.

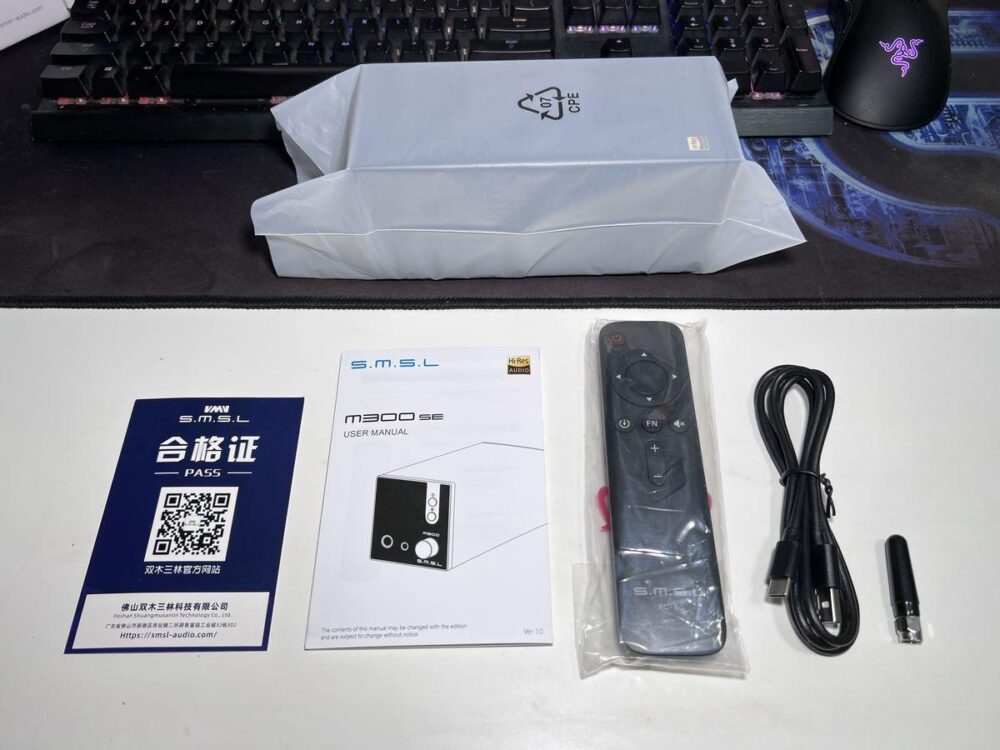

  • Equipped with full-featured remote control and preamp function.
  • All aluminum CNC precision machining chassis.

Specs

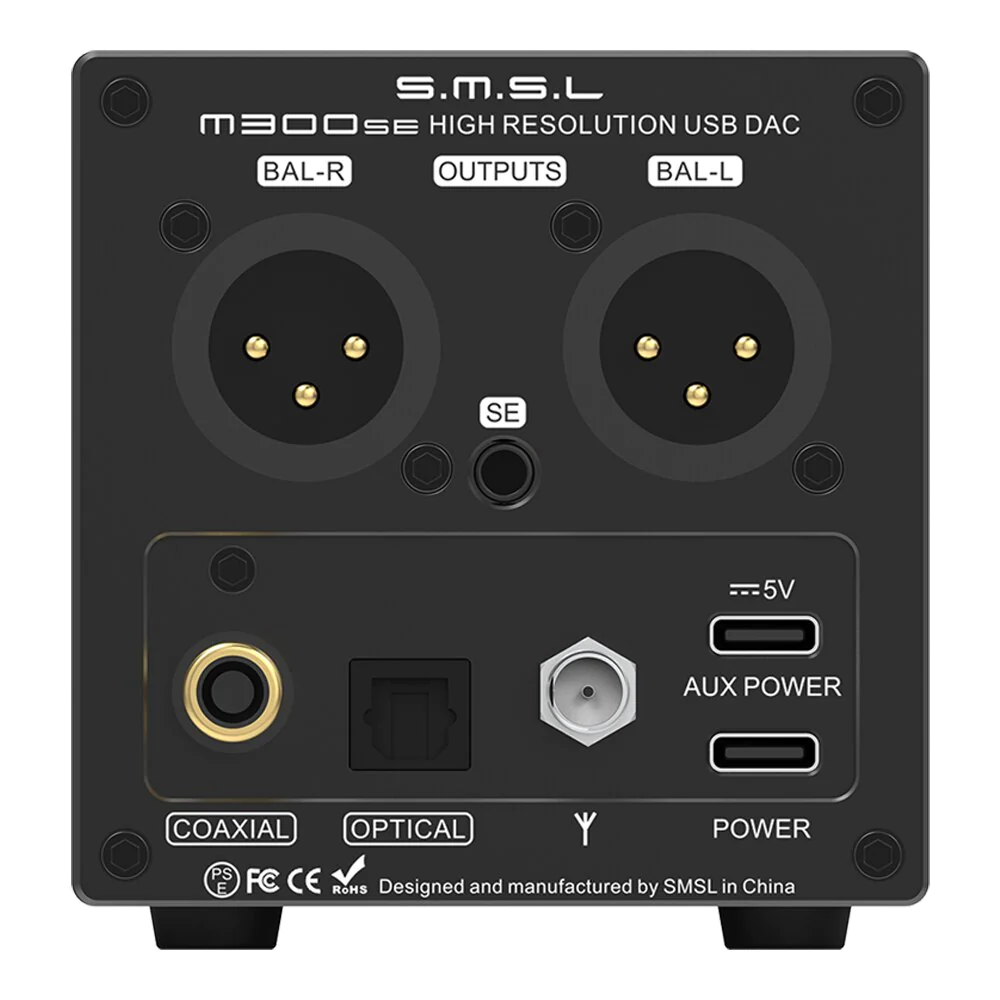

  • Inputs: USB / Optical / Coaxial / Bluetooth
  • Output Level: RCA 2.0Vrms XLR 4.0Vrms
  • THD+N(UN-WTD):0.00013% (-117dB)
  • Dynamic range (UN-WTD): RCA 120dB XLR 132dB
  • SNR (UN-WTD):131dB
  • Bluetooth: BT 5.0 ( support SBC)
  • USB transmission: Asynchronous
  • USB compatibility: Windows 7 / 8 / 8.1 / 10 Mac OS X10.6 or Later / Linux
  • Bit depth: USB:1bit ~ 32bit
  • Optical/coaxial:16bit ~ 24bit
  • Sampling rate: USB:44.1 ~ 768kHz DSD64, DSD128, DSD256, DSD512
  • Optical/coaxial:32 ~ 192kHz
  • Power Consumption:3W
  • Standby power:<0.1W
  • Size:70x73x165mm (WxHxD)
  • Weight:0.54Kg

Price: $119.99
